Ultra Clutch Mod - How do I set the clutch at the adjuster correctly?

Proper clutch adjustment ensures consistent engagement and prevents issues like clutch creep or premature wear.

Here’s how to check and set it correctly:

1. At the lever:
   Make sure there’s a small amount of free play—typically about the thickness of a dime between the lever and perch before resistance is felt. This prevents the clutch from being partially engaged at rest.

2. At the clutch (throw-out adjuster):
   Loosen the lock nut, turn the adjuster screw in until you feel resistance, then back it out ½ to 1 full turn, and re-tighten the lock nut. This sets the proper clearance for full disengagement.

3. Recheck after a few passes:
   Hard launches and heat can cause components to settle or expand slightly, so it’s a good idea to inspect and fine-tune your adjustment after initial runs.

For further detail, please refer to our installation links below.

If you're still unsure, contact our tech support—we’re here to help you get it dialed in.

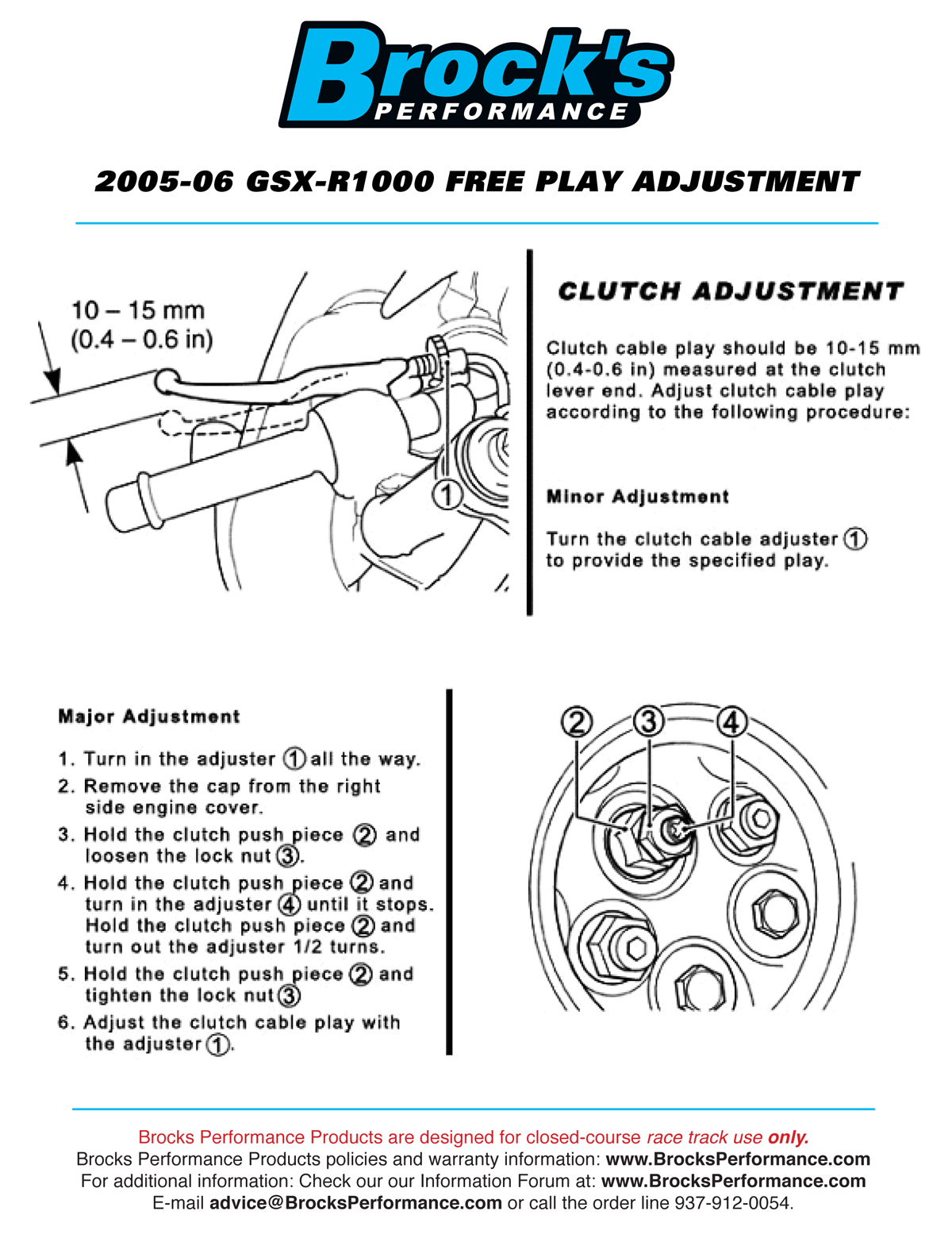

• GSX-R1000 (2005-2006) Free Play Adjustment
• GSX-R1000 (2001-2004) Free Play Adjustment
